Description
SPECS
Cylinders: 3
Bore: 2.99 in.
Stroke: 2.76 in.
Displacement: 58.09 cu. in.
Aspiration: Natural
Length: 29.30 in.
Width: 20.00 in.
Height: 20.40 in.
Weight: 274.00 lbs.

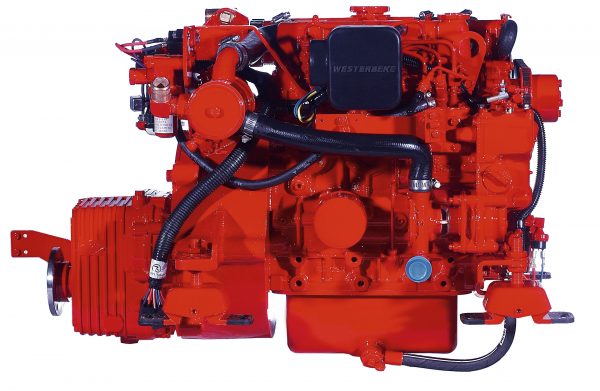

30C Three
Designed by Westerbeke, pioneers in lightweight marine diesel engines, the 30C Three is a compact three-cylinder engine perfect for difficult installations. Weighing in at only 274 pounds, the 30C Three provides a power to weight ratio to be envied while requiring modest engine room space.
Additional information
| Dimensions | 29.30 × 20.00 × 20.40 in |
|---|---|
| Brand | Westerbeke |
| Run Type | Diesel |
| Cylinders | 3 |
| Displacement | 58.09 cu. in. |
| Weight | 274.00 lbs. |
| Age | New |
Technical Documents
Advanced Specifications
Manuals (Operators, Parts, Technical, Installation)
Installation Manual – Marine Engines & Generators
Operator’s Manual 036906
Westerbeke Superseded Parts Listing August 2015
Parts Manual 037115
Parts Callout Drawing 54706
Technical Manual 037600
Guides (Troubleshooting)
Diagrams (Wiring, Installation)
Wiring Diagram 039144 Revision N
Installation Drawing 54873
Bulletins (Service, Parts, Product Recalls)
Parts Bulletin 2010-2: Piston Wrist Pin Size Change
Parts Bulletin 2008-4: Paint Storage
Parts Bulletin 2007-2: Fuel Filter 030200
Service Bulletin #242: Manufacture Date Code
Service Bulletin #238: Fuel Pump Inlet Filter Part Number 048076
Service Bulletin #155: Keyswitch
Service Bulletin #136: Shift Lever
Service Bulletin #125: Oil Pressure Switches
Parts
Common Maintenance Parts
045042 – HOSE KIT 30B
037118 – SPARE PARTS KIT A 30B THREE
037119 – SPARE PARTS KIT B 30B THREE
