12.0 EGTD – 50 Hz

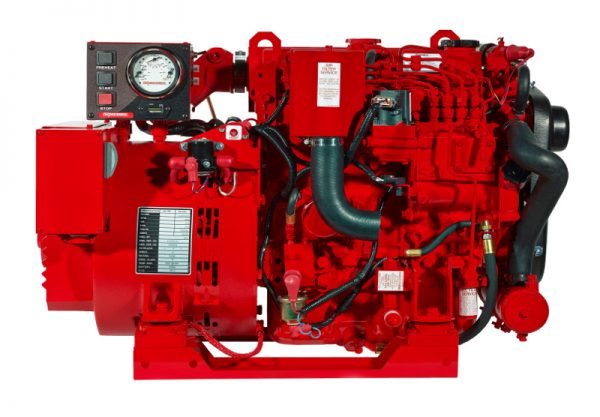

Powered by a lightweight, rugged “industrial engine,” the 12.0 EGTD continues to support the strong record of reliability Westerbeke has built supplying product to the United States Navy and Coast Guard as well as commercial vessels and pleasure craft world-wide.

Category:

Description

SPECS

Cylinders: 4
Bore: 3.07 in.
Stroke: 3.62 in.
Displacement: 107.27 cu. in.
Aspiration: Natural
Length: 35.30 in.
Width: 20.50 in.
Height: 24.00 in.
Weight: 574.00 lbs.

Additional information

Dimensions 35.30 × 20.50 × 24.00 in
Brand

Westerbeke

Run Type

Diesel

Cylinders

4

Displacement

107.27 cu. in.

Weight

574.00 lbs.

Age

New

Technical Documents

Advanced Specifications

Advanced Specifications

Manuals (Operators, Parts, Technical, Installation)

Installation Manual – Marine Engines & Generators
Westerbeke Superseded Parts Listing August 2015
Operator’s Manual 056272
Parts Manual 057157
Technical Manual 045100

Guides (Troubleshooting)

BT GENERATORS A C ELECTRICAL TROUBLESHOOTING GUIDE

Diagrams (Wiring, Installation)

Wiring Diagram 056225 Revision D
Wiring Diagram 056225
Installation Drawing 56268

Bulletins (Service, Parts, Product Recalls)

Parts Bulletin 2008-4: Paint Storage

Parts

Common Maintenance Parts

045055 – HOSE KIT 15.0 BTDC
046420 – SPARE PARTS KIT A 35C
047158 – SPARE PARTS KIT B 44A
