10,000 BTU

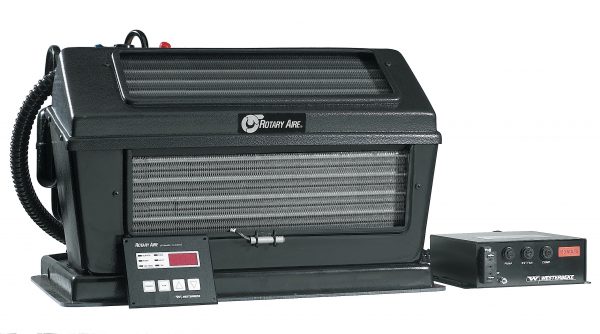

Enjoy the luxury of a cool, comfortable boat cabin on even the hottest summer day… extend your boating season by staying toasty-warm on crisp spring and autumn nights. Automatically remove excess humidity, eliminating the oppressive stickiness and damp mustiness common on boats that are closed up for extended periods. With Westerbeke’s  Rotary Aire Marine Climate Control Systems, instant, efficient cooling, warming, and air dehumidifying are all at your fingertips-at a very affordable price.

Description

SPECS

Starting Amps:
120V @60 Hz – 21.00
230V @50 Hz – 14.00
Running Amps (cooling/heating):
120V @60 Hz – 8.00/10.00
230V @50 Hz – 4.50/6.00

Length: 20.50 in.
Width: 13.75 in.
Height: 13.25 in.
Weight: 55.00 lbs.
Envelope: 2.16 cu. ft.
Refrigerant: 9 oz.

Additional information

Dimensions 20.50 × 13.75 × 13.25 in
Brand

Universal, Westerbeke

Weight

55.00 lbs.

Age

New

Technical Documents

Advanced Specifications

Advanced Specifications

Manuals (Operators, Parts, Technical, Installation)

Operator’s – Parts and Technical Manual 050259

Guides (Troubleshooting)

Diagrams (Wiring, Installation)

Wiring Diagram Rotary Aire Wiring Diagrams

Bulletins (Service, Parts, Product Recalls)

Service Bulletin #238: Fuel Pump Inlet Filter Part Number 048076

Parts

Common Maintenance Parts
